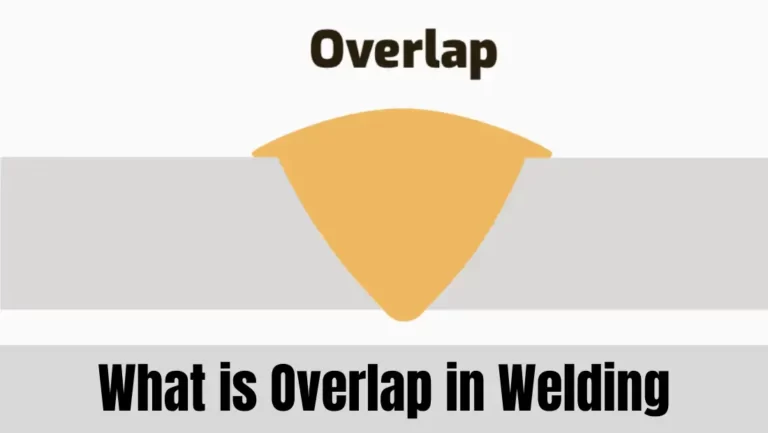

Welding is a process of joining two or more metal parts together by heating the surfaces to their melting point and applying pressure. There are various welding techniques, such as gas welding, arc welding and resistance welding, each with its own set of advantages and disadvantages. One aspect of welding that is important to understand is overlap, which refers to the amount of overlap between the two metal parts being joined.
Table of Contents
Why is Overlap Important in Welding?
Overlap is important in welding because it affects the strength and quality of the weld. A proper amount of overlap ensures that the two metal parts are fully joined, creating a strong bond between them. On the other hand, if there is not enough overlap, the weld may be weak and prone to breaking or cracking. Additionally, an improper amount of overlap can lead to problems with the fit and finish of the final product.
Types of Overlap in Welding
There are two types of overlap in welding: full penetration and partial penetration. Full penetration overlap occurs when the weld completely penetrates the thickness of both metal parts, creating a bond that is as strong as the base metal itself. Partial penetration overlap, on the other hand, only penetrates a portion of the thickness of the metal parts, resulting in a weaker bond.
Full Penetration Overlap
Full penetration overlap is achieved by using a welding technique that can fully melt the metal parts, such as TIG or MIG welding. In these techniques, the welder uses a high-heat, high-energy source to melt the metal and create a deep, strong bond. Full penetration overlap is often used in critical applications, such as in the construction of bridges and buildings, where a strong, reliable weld is essential. Also, read this guide on what is flashback in welding.
Partial Penetration Overlap
Partial penetration overlap is achieved by using a welding technique that does not fully melt the metal parts, such as fillet welding. In fillet welding, the welder applies the weld in a specific shape, such as a “V” or “U,” that only penetrates a portion of the thickness of the metal parts. While partial penetration overlap may be suitable for certain applications, it is generally not as strong as full penetration overlap and is not recommended for critical applications.
Main Causes Of Overlap Welding
There are several main causes of overlap welding, which can result in a weak or defective weld. Some of the most common causes include:
- Improper Welding Techniques: One of the most common causes of overlap welding is the use of improper welding techniques. For example, using a welding technique that is not suitable for the type of metal being welded or not using the correct welding parameters can result in overlap welding.
- Improper Fit-up: Another common cause of overlap welding is improper fit-up, which refers to the alignment of the two metal parts being welded. If the parts are not properly aligned, the weld may only partially penetrate the thickness of the metal, resulting in a weaker bond.
- Contamination: Contamination of the metal surface with oil, grease, or other substances can prevent the weld from properly bonding to the metal. This can lead to overlap welding and a weaker bond.
- Improper Welding Position: The welding position can also be a cause of overlap welding. Welding in a flat or horizontal position, for example, may not provide enough penetration and can result in overlap welding.
- Improper Welding Speed: Welding too fast or too slow can also cause overlap welding. The welder should have good control of the welding speed, it should be neither too fast nor too slow, to ensure proper penetration and a strong bond.
- Inadequate Welding Current: If the welding current is not set correctly, it can cause the metal to not melt properly and result in overlap welding.
- Inadequate Welding Temperature: The welding temperature should be set correctly, if it is set too low, the metal may not melt enough to create a proper bond, resulting in overlap welding.
It’s important to note that, these causes of overlap welding can be avoided by properly preparing the metal surfaces, selecting the correct welding technique, and properly training the welder.
Read More: What is Cold Welding?
How To Prevent Overlap Welding
There are several ways to prevent overlap welding and ensure a strong and reliable weld. Some of the most effective methods include:
- Proper Surface Preparation: One of the most important steps in preventing overlap welding is to properly prepare the metal surfaces before welding. This includes cleaning the metal surfaces of any oil, grease, or other contaminants, as well as removing any rust or other surface imperfections.
- Proper Fit-up: Proper fit-up, or alignment, of the two metal parts being welded, is essential in preventing overlap welding. The parts should be positioned correctly, making sure that they are flush against each other, with no gaps or misalignments.
- Use the Right Welding Technique: Using the correct welding technique for the type of metal and the application is important in preventing overlap welding. For example, TIG welding is a good option for welding thin metal, while MIG welding is better for thicker metal.
- Use the Right Welding Parameters: Setting the correct welding parameters, such as current, voltage, and travel speed, is essential in preventing overlap welding. The welder should use the manufacturer’s recommended settings for the specific welding technique and metal being used.
- Use the Right Welding Position: The welding position can also affect the penetration of the weld and should be chosen accordingly. Welding in a flat or horizontal position may not provide enough penetration, and the welder should use the appropriate position for the thickness of the metal and the welding technique used.
- Properly Train the Welder: To prevent overlap welding, it’s important to have a well-trained welder who knows how to properly use the welding equipment and techniques. Proper training and practice can help prevent errors and improve the quality of the final weld.
- Properly Maintaining the Welding Equipment: Maintaining the welding equipment in good condition is essential in preventing overlap welding. Regularly checking the equipment and replacing worn or damaged parts can help ensure that the equipment is working properly and that the welder has the necessary tools to create a strong and reliable weld.
- Use Quality Materials: Using quality materials, such as welding wire and electrodes, can help prevent overlap welding. Low-quality materials may not melt properly, resulting in a weak or defective weld.
By following these steps and guidelines, the welder can ensure that the final product is strong, reliable, and fit for its intended purpose.
Overlap is an important aspect of welding that affects the strength and quality of the final product. A proper amount of overlap ensures that the two metal parts are fully joined, creating a strong bond between them. There are two types of overlap in welding: full penetration and partial penetration.
Full penetration overlap is achieved by using a welding technique that can fully melt the metal parts, while partial penetration overlap is achieved by using a technique that does not fully melt the metal parts. Understanding the importance and types of overlap in welding can help ensure that the final product is strong, reliable, and fit for its intended purpose.
