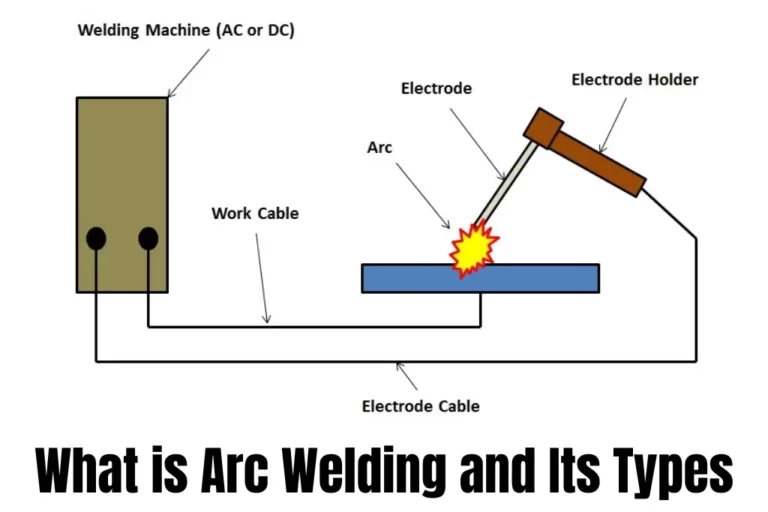

Many people don’t know what is arc welding. Basically, Arc welding is a technique which uses an electrical arc to join two pieces of metal together. It is very versatile and can be used for many different types of projects. It is also a great alternative to other welding techniques such as brazing and fusion welding.
In a power supply, an electric arc is created by passing either direct (DC) or alternating currents through a consumable or non-consumable electrode. Throughout this article, we will what is arc welding, how it operates and its pros and cons.
Read More: Is Welding a Good Career
Table of Contents
What is Arc Welding Used For
ARC welding is a very powerful process that can produce high temperatures of over 10,000 degrees F. It is a very quick way to join metal and is used for a variety of applications. It is best suited for heavy metals and for joining heavy equipment.
There are several different types of electrodes used in arc welding. These include consumable and non-consumable electrodes. The consumable electrodes contain metal that melts during the welding process. The non-consumable electrodes contain metal that does not melt during the welding process.
There are also several different types of rods used in arc welding. The rod coating must be chosen carefully to prevent spatter. It can be uncoated or coated with cellulose, mineral, or other substances. It is important that the rod coating is appropriate for the metal being welded. It also affects the quality of the weld.
The electrodes must also be placed in a fire-safe area. It is important that you wear fire-retardant coveralls, and you should also keep a fire extinguisher nearby. The welding operator must also wear fire-resistant shoes and clothing.
What is Shielded Metal Arc Welding
SMAW or Shielded Metal Arc Welding is a form of welding. It uses an electric arc to heat the metal to be welded. This arc is accompanied by a consumable electrode. This electrode is then inserted into the electrode holder, which is connected to the welding power source.
The SMAW process has special characteristics that are not found in other welding procedures. These characteristics include a slag layer, the shielding of the arc, and the shielding of the electrode. These special characteristics make SMAW welding suitable for a wide variety of metals.
SMAW is used to weld steel, iron, and cast iron. It can also be used to weld high-alloy steel. However, it is not the most popular form of welding. It is more time-consuming than other welding procedures. It is mainly used to join iron and steel parts.
The SMAW process is not automated. The welder has to insert a new electrode periodically. There is also a need to maintain a certain distance between the electrode and the base metal. If the electrodes stick to the base metal, the weld can be damaged.
Read More: How to Weld Cast Iron
What is Gas Metal Arc Welding
GMAW is one of the most common welding methods in industrial and automobile applications. The process offers relatively low penetration and a relatively high metal deposition rate. The process is especially useful for welding metals with high thermal conductivity. It can be applied in several welding positions and is very productive.
GMAW is a form of fusion welding. The process uses an electric arc to fuse the workpiece metals. The welder wears protective clothing and avoids exposure to flames. In addition to a welding gun, a shielding gas is supplied to protect the weld metal. This shielding gas surrounds the arc and protects it from atmospheric contamination.
The arc is generated from a wire that is fed into the welding gun. The wire acts as an electrode. When heated, the arc melts a small portion of the base metal. The heat of the arc also melts the flux material, resulting in slag that floats over the weld metal. The slag reduces heat loss through conduction. Here is a complete guide on how hot is a welder arc.
Gas metal arc welding is a very simple welding process. However, the quality of the weld depends on several external factors. It is important to consult a weld specification sheet or weld manual before welding.
Read More: What is Undercut Welding
What is Flux Cored Arc Welding
Compared to other welding methods, Flux-cored arc welding offers several advantages. It is portable, easy to operate and provides high-quality welds. It is especially well suited for outdoor work. It is widely used in the construction and mechanical industries.
Flux-cored arc welding can be done with air-cooled guns or water-cooled guns. It is an excellent choice for joining thick metal sections. It can also be used to join hard-facing alloys. It is commonly used in applications with high deposition rates. It can also be used in maintenance and surfacing applications.
Flux-cored arc welding can be used on almost all carbon steels, stainless steels, cast iron and nickel-based alloys. However, it cannot be used on aluminium.
The flux-cored electrode is made of a metal sheath with a core of mineral compounds. The core protects the weld pool from slag and gas. It has a minimum tensile strength of 70,000 pounds per square inch of weld. It can be used in both vertical and horizontal positions.
Flux-cored arc welding is a semi-automatic welding process. It uses an electrical arc to fuse base metal with a continuously fed tubular electrode filled with flux. It is typically used in industrial manufacturing and fabrication shops.
What is Submerged Arc Welding
Basically, submerged arc welding is a welding process where an electric arc is developed between two electrodes, typically steel. It produces a strong, ductile weld that is corrosion-resistant. It is used for welding metals and other structural parts.
Depending on the type of arc welding, the electrodes can be of different sizes and shapes. They come in coils and straight lengths. They are usually coated with copper to increase electrical conductivity. They can also be cored wires or strips. They are available in mild, stainless, and high-carbon steel.
The flux that surrounds the arc is generally made from a variety of minerals, including calcium fluoride, manganese oxide, and silica. The flux also produces a protective gas shield that protects the arc zone from atmospheric contamination.
The flux hopper controls the rate of flux deposition to the welding joint. It is also used to collect any unused flux after the welding process. The recovered flux can then be used again for welding.
Submerged arc welding can be used to weld pipes, vessels, pressure vessels, and other structures. It is particularly useful for large structures, such as barges. It also produces structurally sound welds.
Read More: Cold welding and its benefits
What is Gas Tungsten Arc Welding
Besides being a common welding process, gas Tungsten arc welding is also known as “TIG welding”. This process involves heating metals with an electric arc. This process is commonly used to weld metals that have poor weldability. The process is also used in the Oil and Gas Industry to weld pipes.
The process produces a high-quality weld. Its fume-free output, high speed, and ability to control the heat input make it an ideal choice for a wide variety of industrial applications. The process also allows for fill passes in thick-wall pipe welds.
The process is also commonly used to weld nonferrous metals. It has been found to be difficult to weld nonferrous metals when using other welding methods. Using an electrode made of pure tungsten makes it possible to produce high-quality, precise welds.
During the welding process, the electrode will become extremely hot. It is therefore important to use a clean and polished electrode. It should also have a shiny ball tip.
The process also requires an inert gas shield. The most commonly used shielding gases are helium and argon. The inert gas shield protects the molten weld pool and the metal being welded from contamination.
Advantages & Disadvantages Of Arc Welding
Among the many welding techniques, arc welding has some advantages and disadvantages. It is an economical, portable and fast way to join metals. However, its disadvantages include higher costs, more waste and a less efficient process. Nevertheless, there are many industries that prefer arc welding over other welding techniques.
In arc welding, an electric arc forms between two electrodes. This is then used to melt metal. This method can be used on various metals and alloys. It is also suitable for joining soft and hard materials. However, arc welding is not suitable for reactive metals.
Some arc welding processes use a shielding gas. The shielding gas provides protection to the metal from contaminants in the atmosphere. However, the shielding gas must be the right type. It also has to be able to flow at the right rate.
Arc welding is often used for joining metals that contain oxidation or oxide layers. These layers can interfere with the fusion process. It can also produce porous welds, which reduce productivity. Although arc welding produces a clean weld, it can cause excess to spatter. It can also produce fumes and dust, which can be harmful to humans.
Read More: Difference Between Good Weld Vs Bad Weld
During arc welding, an electrode produces an arc that melts a filler metal. It also produces a protective layer of slag. The slag is removed after the welding process is complete.
Arc welding can be done indoors or outdoors. It is very convenient and easy to use. However, it is important to use the right safety measures. You should read all warning labels on your equipment, and make sure you have adequate ventilation. You should also wear a respirator if you are required to do so.
The main function of shielding gas is to maintain the low-voltage arc. It also controls the shape of the weld bead. Moreover, it limits the contact of the liquid metal with the air when it is cooled. It also has a secondary function of controlling the mechanical properties of the weld.
The best way to determine the best arc welding process is to consider the purpose of the weld. Depending on the type of metal being welded and its thickness, you can choose from several methods.
