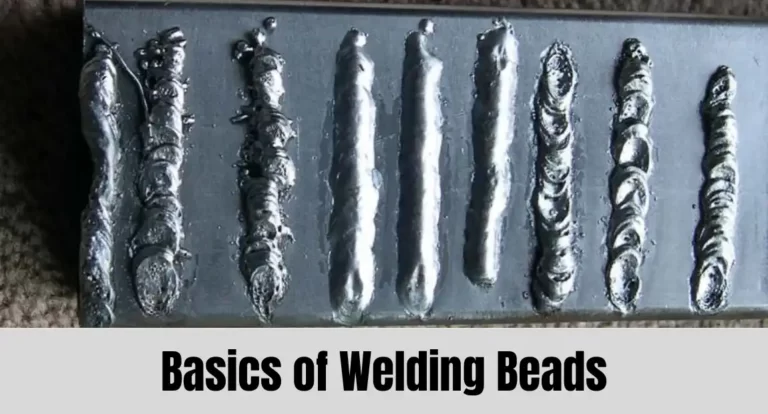

Welding beads, also known as weld beads, are long streaks of molten metal created in the welding process when two separate pieces of metal are melted together. Welding beads provide various benefits and are used in many industrial processes and applications.
In this comprehensive guide, we’ll take you through the basics of welding beads. From construction to car manufacturing, welding beads are an essential part of the welding process. Understanding the basics and knowing how to use them properly can save time and money while ensuring a quality product. Let’s get started!
What are Welding Beads?
Welding beads are an essential aspect of welding. A welding bead is a thin layer of metal that is fused to the workpiece during the welding process. The bead is created by melting the base metal and the filler material together. The bead’s shape and appearance can provide insight into the welder’s skill and the quality of the weld.
Understanding the Different Types of welding beads
There are several types of welding beads, each with its unique characteristics and applications. Here are some of the most common types:
- Flat Weld Bead: This type of weld bead is characterized by a flat surface and is used to join two plates of equal thickness.
- Fillet Weld Bead: A fillet weld is a triangular-shaped bead that is used to join two pieces of metal at an angle. It is commonly used in construction and fabrication applications.
- Butt Weld Bead: This type of weld bead is used to join two pieces of metal end to end. It can be made with or without filler metal.
- Plug Weld Bead: A plug weld is a type of weld bead that is used to join two pieces of metal that overlap. It is typically made by drilling a hole in one piece of metal and welding the other piece to it through the hole.
- Seam Weld Bead: A seam weld is a continuous weld bead that runs along the length of a joint. It is commonly used in piping and sheet metal fabrication applications.
- Spot Weld Bead: A spot weld is a type of weld bead that is used to join two pieces of metal by applying heat and pressure to a small area. It is commonly used in automotive and sheet metal fabrication applications.
- Back Weld Bead: A back weld is a type of weld bead that is used to reinforce the back side of a joint. It is commonly used in pipe welding applications.
These are just some of the most common types of welding beads. Other types include edge welds, surfacing welds, and overlay welds. The type of welding bead used will depend on the specific application and the materials being welded.
Patterns of Welding Beads
Sure, here are some common welding beads patterns:
- Stringer Bead: This is the simplest and most commonly used welding bead pattern. It is a straight line of weld deposited along the joint between the two pieces of metal. The stringer bead is used to make a strong and consistent weld.
- Weave Bead: This welding bead pattern involves moving the welding torch in a zig-zag motion while depositing the weld metal. This pattern is used to create a wider and stronger weld that covers a larger area than a stringer bead.
- Circle Bead: This welding bead pattern involves depositing the weld metal in a circular motion. This pattern is used when welding in a circular or curved joint to ensure even and consistent weld penetration.
- Figure 8 Bead: This welding bead pattern is similar to the circle bead pattern but involves depositing the weld metal in a figure-8 motion. This pattern is used when welding in a joint that requires multiple passes, and it helps to ensure even and consistent weld penetration.
- J Bead: This welding bead pattern involves depositing the weld metal in the shape of a “J” along the edge of one piece of metal. This pattern is used when joining two pieces of metal at a right angle and helps to ensure good penetration along the joint.
Choosing the Right Welding Rod for Your Welding Beads
When it comes to creating high-quality welding beads, choosing the right welding rod is essential. There are several factors to consider to ensure that you choose the right welding rod for your specific needs.
- Material Type and Thickness: The type and thickness of the material you are welding will dictate the type of welding rod you should use. For example, if you are welding thick pieces of steel, you will need a rod with a high amperage rating.
- Welding Position: The position in which you are welding (flat, horizontal, vertical, overhead) will also play a role in which welding rod you should choose. For example, if you are welding in an overhead position, you will need a welding rod that provides good penetration and can be controlled easily.
- Coating Type: Welding rods come coated with different substances to provide different benefits, such as easier striking, smoother welds, or enhanced strength. Understanding the different coating types and their benefits can help you choose the right rod for your specific welding needs.
When selecting a welding rod, it’s important to consult the manufacturer’s recommendations or speak with a welding expert if you are unsure which rod to choose.
Proper Cleaning and Preparation for Welding Beads
When it comes to welding beads, proper cleaning, and preparation are key to achieving a successful and high-quality weld. Here are some important steps to follow before starting the welding process:
- Remove any rust, oil, or debris from the surface area before welding. This can be done using a wire brush, angle grinder, or other suitable tools.
- Determine the type of metal you will be welding and clean it accordingly. Different metals require different cleaning methods, so it is important to choose the right one for the job. For example, aluminum should be cleaned with a dedicated aluminum cleaner, while stainless steel should be cleaned with a stainless steel cleaner.
- Check for any signs of contamination or impurities in the metal. This can be done using a magnet, which will not stick to pure metal but may stick to contaminated metal.
- Properly align and fit the metal pieces together. This will ensure that the weld is strong and secure.
- Use a suitable welding technique and equipment for the type of metal and thickness being welded. This can vary depending on the project, so it is important to choose the right technique and equipment for the job at hand.
By following these steps, you can ensure that your welds are of high quality and will last for a long time. Proper cleaning and preparation may take extra time and effort, but it is well worth it in the end.
Bead Welding Techniques: Tips and Tricks for Success
Welding beads are formed by the additional material that melts and fills the gap between two metal pieces. In welding, bead size, shape, and quality can indicate the weld’s strength and integrity. Welding bead techniques vary depending on the metal type, joint type, welding method, and position.
Here are some tips and tricks to achieve successful welding beads:
- Clean the metal surfaces: Before welding, it is essential to remove any rust, oil, paint, or debris that hinders the welding process and compromises the quality of the weld. Use a wire brush, grinder, or chemical cleaning solution to eliminate dirt and grime.
- Select the right electrode: Different metal types require specific electrodes to ensure a strong and successful weld. Electrodes come in various sizes, coatings, and materials, so ensure you use the one that matches the metal type and joint type.
- Adjust the welding parameters: Welding parameters such as voltage, amperage, travel speed, and arc length can significantly impact the bead shape, size, and penetration. Follow the manufacturer’s recommendations and adjust the parameters according to the metal thickness and joint type.
- Maintain the correct travel speed: The ideal travel speed is critical to achieving a consistent bead size and shape. Moving too fast or too slow can result in a flawed weld, including undercutting, spattering, and lack of penetration.
- Use proper technique: Welding technique is crucial to producing good welds and achieving a consistent bead appearance. Ensure your technique is steady, and your hands are stable. Keep the electrode near perpendicular to the workpiece and maintain a consistent arc length.
- Maintain appropriate heat input: Heat input impacts the weld bead’s size and shape. Too much heat input can cause distortion or burn-through, while too little heat input may result in insufficient penetration or incomplete fusion in the joint.
Remember, practice makes perfect; it may take some practice to master these techniques, but with time, you can produce beautiful, strong welding beads.
Advancements and Innovations in Welding Beads
Welding beads have been a staple of metalworking for many years, but recent advances in technology have led to some exciting innovations in this field. Let’s take a look at some of the recent advancements and how they are changing the game for welding beads.
- Laser Welding Beads: Laser welding is an innovative method that utilizes high-powered lasers to melt metal surfaces together. It is a high-speed, precision process that allows for clean, efficient welds without leaving behind any excess materials or byproducts.
- Cold Welding Beads: Cold welding is a type of welding that uses pressure to fuse metal surfaces together without the need for additional heat or solder. This process is ideal for materials that can’t withstand high temperatures or for situations where heat could damage nearby components.
- Robotics: Advances in robotics have made it possible to automate many welding tasks, which can improve efficiency and accuracy while reducing the risk of human error.
- Virtual Reality: Virtual reality technology is being used to simulate welding environments, which can help train new welders and improve safety on job sites.
- High-Speed Cameras: High-speed cameras are being used to capture images of welding beads at a rate of thousands of frames per second. This technology allows for a detailed analysis of the welding process, which can help identify areas for improvement and enhance quality control.
- Modified Atmosphere Welding: Modified atmosphere welding involves creating a controlled environment around the welding area to reduce the risk of oxidation, which can weaken the weld joint. This method is particularly useful for welding materials that are highly sensitive to oxidation, such as titanium.
- Plasma Arc Welding: Plasma arc welding is a high-precision process that uses a jet of ionized gas to create an intense heat source. This process can produce clean, efficient welds with minimal distortion or deformation, making it ideal for welding thin materials.
Understanding the basics of welding beads is essential for any aspiring welder. With proper technique and practice, you can create strong, durable joints and achieve the desired results with your welds. We hope this comprehensive guide has provided you with the necessary information to get started with welding beads.
What is a stringer bead in welding?
- A stringer bead is a type of welding technique used to make a straight and narrow weld along a joint.
- It involves running a single pass of welding bead along the length of the joint.
- The resulting weld is often neat and uniform, but may not be as strong as other types of welds.
- The stringer bead technique is commonly used in welding thin materials or for filling small gaps.
- It is important to maintain consistent speed and angle while performing a stringer bead to ensure a quality weld.
What is a bead in welding?
- In welding, a bead is a term used to describe the material that is melted and deposited by the welding process.
- It refers to the visible line or raised area left on the surface of the metal after the welding is complete.
- The size, shape, and appearance of the bead can vary depending on the type of welding process and the skill of the welder.
- A properly formed bead is important for creating a strong and durable weld that can withstand the forces it will be subjected to.
- Welders must pay attention to the formation of the bead and make adjustments to their technique as necessary to ensure a quality weld.
James is a welding expert, accomplished author, and trusted guide with over 8 years of experience in the industry. With his in-depth knowledge and engaging writing style, James has become a true authority in the field, offering readers and clients invaluable expertise and insights to take their welding skills to new heights.
